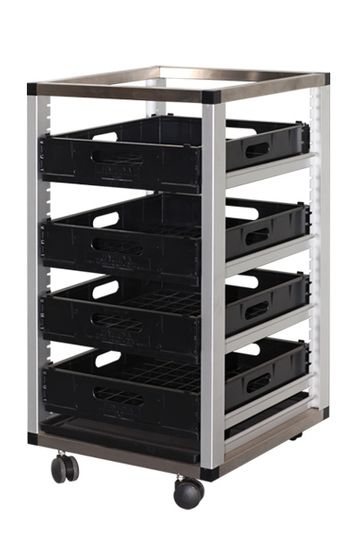

Glass Basket Trolleys
Glass basket trolleys are available in a variety of capacities. Designed to make the movement of large amounts of glassware safe and efficient. The single four tier module can be used under the bar in lieu of fixed under bar frames. Each trolley has the capacity for a removable drip tray for easy cleaning.
All trolleys have adjustable runners.
17″ x 14″
| PART No. | Description | Size (mm) | Castor Size |
|---|---|---|---|
|
# 1904 |
4 Basket
Single Tier Trolley
|
425 x 490 x 830
incl. castors |
50mm |
|
# 1906C |
6 Basket
Single Tier Trolley |
425 x 490 x 1426
incl. castors |
125mm |
|
# 1908C |
8 Basket
Double Tier Trolley |
825 x 490 x 1027
incl. castors |
125mm |
|
# 1910C |
10 Basket
Double Tier Trolley |
825 x 490 x 1302
incl. castors |
125mm |
|
# 1912C |
12 Basket
Double Tier Trolley |
825 x 490 x 1426
incl. castors |
125mm |
|
# 1916C |
16 Basket
Double Tier Trolley |
825 x 490 x 1801
incl. castors |
125mm |
500mm x 500mm
| PART No. | Description | Size (mm) | Castor Size |
|---|---|---|---|
|
# 1950C |
4 Basket
Single Tier Trolley
|
560 x 560 x 830
incl. castors |
50mm |
|
# 1951C |
6 Basket
Single Tier Trolley |
560 x 560 x 1426
incl. castors |
125mm |
|
# 1952C |
8 Basket
Double Tier Trolley |
1090 x 560 x 1027
incl. castors
|
125mm |
|
# 1953C |
10 Basket
Double Tier Trolley |
1090 x 560 x 1302
incl. castors |
125mm |
|
# 1954C |
12 Basket
Double Tier Trolley |
1090 x 560 x 1426
incl. castors |
125mm |
|
# 1955C |
16 Basket
Double Tier Trolley |
1090 x 590 x 1801
incl. castors |
125mm |
CAPACITIES
- 4 - 6 - 8 - 10 - 12 and 16 Baskets
- to suit 17" x 14" or 500mm x 500mm baskets
MATERIALS
- Top and Base Frames in Stainless Steel
- Uprights and Runners in Anodised Aluminium
CASTORS
- 4 Tray use 50mm Ball Castors
- 6 - 16 Trays uses 125mm Grey Rubber Swivel Castors (2 with brake)
OPTIONS
- All capacities can be supplied as racks with Disc Feet for use as Glass Basket Stands
Note:
– 17″ x 14″ DRIP TRAYS AND BASKETS SOLD SEPARATELY
– Removable drip trays make cleaning up easy
– Adjustable runners to fit your basket height
** Trolleys are supplied flat packed for ease of handling and cost efficient delivery.
